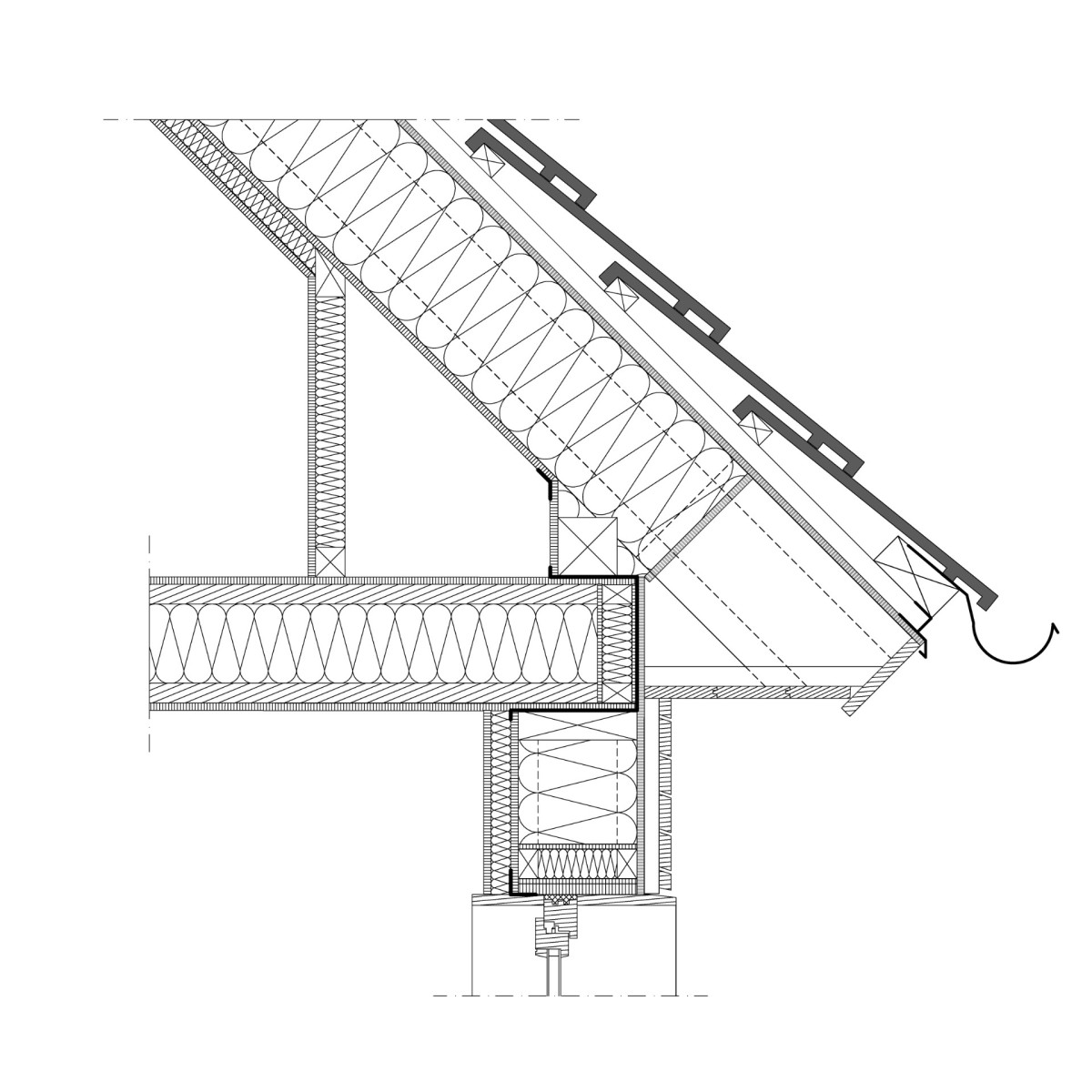

Regeldetail E-ER03

Detail Traufe mit EcoBox
resource efficient use of wood compared to solid timber

E-ER03

 Detail Traufe mit EcoBox
resource efficient use of wood compared to solid timber

Daten Download

No downloads available
Bei Bedarf können wir Ihnen gerne eine DXF oder DWG Datei zur Verfügung stellen.

Regeldetail

Teilen Sie jetzt das ausgewählte Regeldetail als direkten Link:

Zugehörige Basiskonstruktionen - Exterior walls

Exterior walls Exterior walls

Construction E1101-01

E1101-01
Construction layer (PDF)
File size 1,0 MB
  • Fire resistance: EI0
  • Fire classification report: ./.
  • Heat insulation: Variable insulation material possible
  • Inner surface wall: OSB visible possible
Construction details
Exterior walls Exterior walls

Construction E1101-03

E1101-03
Construction layer (PDF)
File size 1,1 MB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4; table 10.7, row 1
  • Heat insulation: Rock wool 30kg/m³
  • Inner surface wall: OSB visible possible
Construction details
Exterior walls Exterior walls

Construction E1103-03

E1103-03
Construction layer (PDF)
File size 1,4 MB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4; table 10.7, row 1
  • Heat insulation: Rock wool 30 kg/m³
  • Inner surface wall: OSB visible possible
Construction details
Weitere Konstruktionen anzeigen
Dieser Link leitet Sie in unsere Konstruktionssuche

Zugehörige Anschlusskonstruktionen - Roof

Roof Roof

Construction E2101-01

E2101-01
Construction layer (PDF)
File size 1,2 MB
  • Fire resistance: EI0
  • Fire classification report: none
  • Insulation material: Insulation material min. normal flammability
  • Roof shape: Pitched roof
Construction details
Roof Roof

Construction E2101-03

E2101-03
Construction layer (PDF)
File size 1,1 MB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.19, row 1
  • Insulation material: Variable insulation material possible
  • Roof shape: Pitched roof
Construction details
Roof Roof

Construction E2101-03a

E2101-03a
Construction layer (PDF)
File size 1,2 MB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.19, row 1
  • Insulation material: Variable insulation material possible
  • Roof shape: Pitched roof
Construction details
Weitere Konstruktionen anzeigen
Dieser Link leitet Sie in unsere Konstruktionssuche
