Welcome to our Expert search

Choose from a variety of constructions in the application areas roof, wall and ceiling. Use our Expert search to quickly and flexibly find the right structures for your planning task.

This is how easily our search works:

  1. Set the filters
  2. Select a suitable construction
  3. Check the system layer PDF & properties
  4. Login to myEGGER: Download construction data without restrictions

Our tip: Simply highlight your favorites to stay informed of any updates!





Technical Support

You have any technical questions or need support concerning our products and their application? Our application engineers are pleased to support you with any queries you have:



Filter

Application
4 additional Filters
Fire resistance
16 additional Filters
Insulation material
11 additional Filters
Sound insulation
8 additional Filters
61 to 90 of 96

All constructions

Partition wall

Construction E1315-03

E1315-03
Construction layer (PDF)
File size 1,2 MB
  • Fire resistance: F30-B
  • Application: Load-bearing, not room-enclosing partition wall with single-layer cladding
  • Heat insulation: Insulation material B2
Construction details
Partition wall

Construction E1315-03a

E1315-03a
Construction layer (PDF)
File size 1,2 MB
  • Fire resistance: F30-B
  • Application: Load-bearing, not room-enclosing partition wall with single-layer cladding
  • Heat insulation: Insulation material B2
Construction details
Partition wall

Construction E1316-02

E1316-02
Construction layer (PDF)
File size 1,2 MB
  • Fire resistance: REI60
  • Verwendbarkeitsnachweis Feuer: Klassifizierungsbericht HF Austria 2586/2018/09-BB
  • Application: Load-bearing, room-enclosing partition wall with gypsum fire board or gypsum fibre board cladding
  • Heat insulation: Glas wool 11 kg/m³
Construction details
Partition wall

Construction E1317-02

E1317-02
Construction layer (PDF)
File size 1,2 MB
  • Fire resistance: REI90
  • Verwendbarkeitsnachweis Feuer: Klassifizierungsbericht HF Austria 2586/2018/24-BB
  • Application: Load-bearing, room-enclosing partition wall with gypsum fire board or gypsum fibre board cladding
Construction details
Partition wall

Construction E1318-02

E1318-02
Construction layer (PDF)
File size 1,2 MB
  • Fire resistance: REI90
  • Verwendbarkeitsnachweis Feuer: Klassifizierungsbericht HF Austria 2586/2018/24-BB
  • Application: Load-bearing, room-enclosing partition wall with gypsum fire board or gypsum fibre board cladding
  • Heat insulation: Rock wool 30 kg/m³
Construction details
Partition wall

Construction E1319-03

E1319-03
Construction layer (PDF)
File size 1,1 MB
  • Fire resistance: F90-B
  • Load-bearing, room-enclosing partition wall with gypsum fire board cladding
  • Heat insulation: Rock wool 50kg/m³
Construction details
Partition wall

Construction E1319-03a

E1319-03a
Construction layer (PDF)
File size 1,1 MB
  • Fire resistance: F90-B
  • Load-bearing, room-enclosing partition wall with gypsum fire board cladding
  • Heat insulation: Rock wool 100kg/m³
Construction details
Roof

Construction E2103-03

E2103-03
Construction layer (PDF)
File size 1,1 MB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.20, row 10
  • Insulation material: Rock wool 30 kg/m³
  • Roof shape: Pitched roof
Construction details
Roof

Construction E2201-03

E2201-03
Construction layer (PDF)
File size 894,7 kB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.25, row 1
  • Insulation material: Rock wool 30 kg/m³
  • Roof shape: Pitched roof
Construction details
Roof

Construction E2201-03a

E2201-03a
Construction layer (PDF)
File size 768,5 kB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.25, row 1
  • Insulation material: Foam plastic
  • Roof shape: Pitched roof
Construction details
Roof

Construction E2201-03b

E2201-03b
Construction layer (PDF)
File size 893,9 kB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.25, row 3
  • Insulation material: Foam plastic
  • Roof shape: Pitched roof
Construction details
Roof

Construction E2202-03

E2202-03
Construction layer (PDF)
File size 542,8 kB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.25, row 2
  • Insulation material: Foam plastic
  • Roof shape: Pitched roof
Construction details
Roof

Construction E2202-03a

E2202-03a
Construction layer (PDF)
File size 809,1 kB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.6, row 3
  • Insulation material: Foam plastic
  • Roof shape: Pitched roof
Construction details
Roof

Construction E2501-03

E2501-03
Construction layer (PDF)
File size 1,3 MB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.19, row 1
  • Insulation material: Insulation material normal flammability
  • Roofing: Flat roof
Construction details
Roof

Construction E2502-03

E2502-03
Construction layer (PDF)
File size 1,2 MB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.19, row 1
  • Insulation material: Insulation material normal flammability
  • Roofing: Flat roof
Construction details
Roof

Construction E2503-03

E2503-03
Construction layer (PDF)
File size 910,5 kB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.20, row 9
  • Insulation material: Rock wool 50 kg/m³
  • Roofing: Flat roof
Construction details
Roof

Construction E2503-03a

E2503-03a
Construction layer (PDF)
File size 913,0 kB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.20, row 10
  • Insulation material normal flammability
  • Roofing: Flat roof
Construction details
Roof

Construction E2503-03b

E2503-03b
Construction layer (PDF)
File size 1,1 MB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.20, row 10
  • Insulation material normal flammability
  • Roofing: Flat roof
Construction details
Roof

Construction E2504-03

E2504-03
Construction layer (PDF)
File size 1,3 MB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.25, row 1
  • Insulation material: Rock wool pressure resistant
  • Roofing: Flat roof
Construction details
Roof

Construction E2504-03a

E2504-03a
Construction layer (PDF)
File size 1,4 MB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.25, row 6
  • Insulation material: Rock wool pressure resistant
  • Roofing: Flat roof
Construction details
Roof

Construction E2505-02

E2505-02
Construction layer (PDF)
File size 1,2 MB
  • Fire resistance: REI45
  • Fire classification report: Classification report HF Austria 2586/2018/27-BB
  • Insulation material: Variable insulation material possible
  • Roofing: Flat roof
Construction details
Roof

Construction E2506-02

E2506-02
Construction layer (PDF)
File size 1,2 MB
  • Fire resistance: REI60
  • Fire classification report: Classification report HF Austria 2586/2018/28-BB
  • Insulation material: Variable insulation material possible
  • Roofing: Flat roof
Construction details

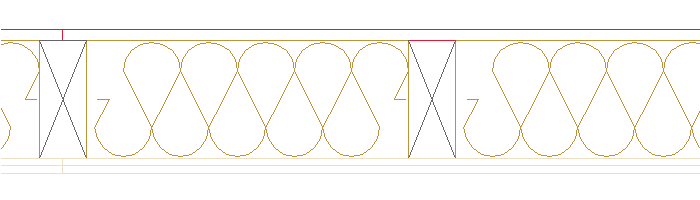

Roof

Construction E2506-03

E2506-03
Construction layer (PDF)
File size 1,3 MB
  • Fire resistance: F60-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4:2016, table 10.20, row 2
  • Insulation material: Insulation material normal flammability
  • Roofing: Flat roof
Construction details
Ceilings

Construction E3101-03

E3101-03
Construction layer (PDF)
File size 1,0 MB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to AbP P-SAC-02/III-522
  • Thermal insualtion: Exposed beam layer
  • Screed height: Dryscreed
Construction details
Ceilings

Construction E3102-02a

E3102-02a
Construction layer (PDF)
File size 1,2 MB
  • Fire resistance: REI45
  • Fire classification report: Classification report HF Austria 2586/2018/32-BB
  • Thermal insualtion: Exposed beam layer
  • Screed height: Dryscreed
Construction details
Ceilings

Construction E3201-03

E3201-03
Construction layer (PDF)
File size 962,2 kB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4, table 10.16, row 1
  • Thermal insualtion: Exposed beam layer
  • Screed height: Dryscreed
Construction details
Ceilings

Construction E3201-03a

E3201-03a
Construction layer (PDF)
File size 972,7 kB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4, table 10.16, row 1
  • Thermal insualtion: Exposed beam layer
  • Screed height: Dryscreed
Construction details
Ceilings

Construction E3202-03

E3202-03
Construction layer (PDF)
File size 1,0 MB
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4, table 10.16, row 2
  • Thermal insualtion: Exposed beam layer
  • Screed height: Dryscreed
Construction details
Ceilings

Construction E3503-03

E3503-03
Construction layer (PDF)
File size 1,0 MB
  • Fire resistance: F60-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4, table 10.11, row 5
  • Screed height: 55 mm
Construction details
Ceilings

Construction E3504-02

E3504-02
Construction layer (PDF)
File size 1,1 MB
  • Fire resistance: REI60
  • Fire classification report: Classification report HF Austria 2586/2018/26-BB
  • Screed height: 55 mm
Construction details
