Ceilings Ceilings

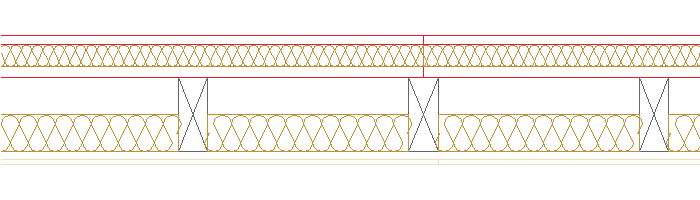

Construction E3701-03

The sealed
Well hidden: Our constructions with closed beam layer.
E3701-03
  • Fire resistance: F30-B
  • Fire classification report: Fire resistance F30-B according to DIN 4102-4, table 10.11, row 1
  • Sound insulation Rw (C,Ctr): > 54 dB
  • Sound insulation impact sound Ln,w: 52 dB

Data download

Construction layer (PDF)
File size 961,4 kB
Drawings in DWG format
File size: 1,4 MB
Drawings in DXF format
File size: 3,4 MB
Fire protection certificate

You can find the BIM enabled data for the Ceilings system family collected as:

Revit File
File size 8,0 MB
Egger Revit Material library
File size 9,4 MB

In order to access the constructions in IFC and REVIT format, please register as a business customer on myEGGER.
