Ceilings

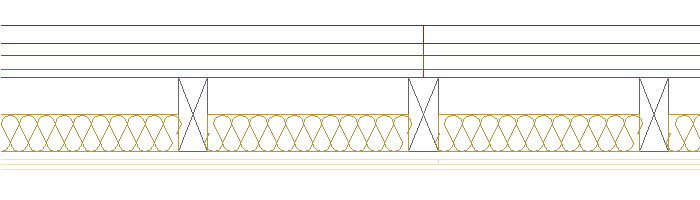

Construction E3702-02

The fortified

REI 90-60-90? Our constructions with particularly high fire protection classifications.

Fire resistance: REI60
Fire classification report: REI60 according to dataholz.at, partition ceiling tdrnxa03b (No. 4)
Sound insulation Rw (C,Ctr): 70 (0,-4) dB
Sound insulation impact sound Ln,w: 41(0) dB

Data download

Construction layer (PDF)

File size 854,6 kB

Drawings in DWG format

File size: 2,0 MB

Drawings in DXF format

File size: 4,5 MB

Fire protection certificate

You can find the BIM enabled data for the Ceilings system family collected as:

Revit File

File size 8,0 MB

Egger Revit Material library

File size 9,4 MB
